• Floor covering, Graphite-colored rubberized-vinyl
• Mirror, inside rearview manual day/night

• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Rear wheel drive
• Steering, power, rack-and-pinion

• Daytime Running Lamps with automatic exterior lamp control

TIRES, P245/70R17 ALL-SEASON, BLACKWALL

• includes a blackwall spare tire (STD)

SUSPENSION PACKAGE, SOLID SMOOTH RIDE

• includes 35 mm piston twin tube shocks and 36mm front stabilizer bar (STD)

WHEELS, 4 - 17" X 7.5" (43.2 CM X 19.1 CM) 6-LUG CHROME-STYLED STEEL

• includes chrome center caps

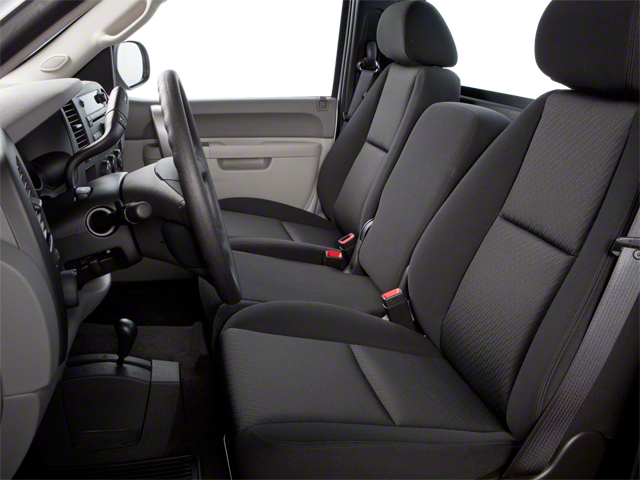

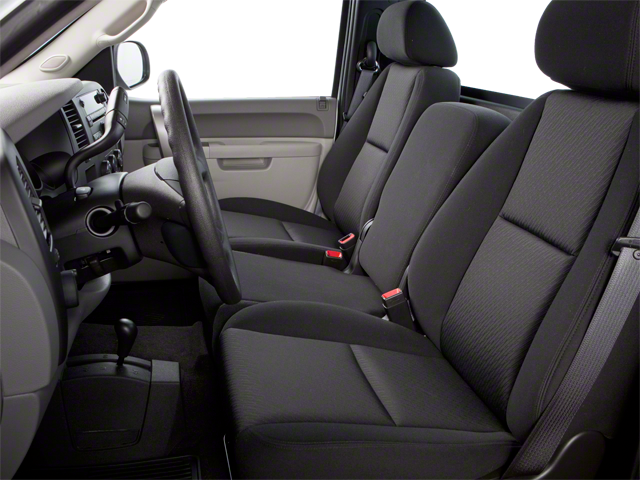

SEATS, FRONT 40/20/40 SPLIT-BENCH

• 3-passenger

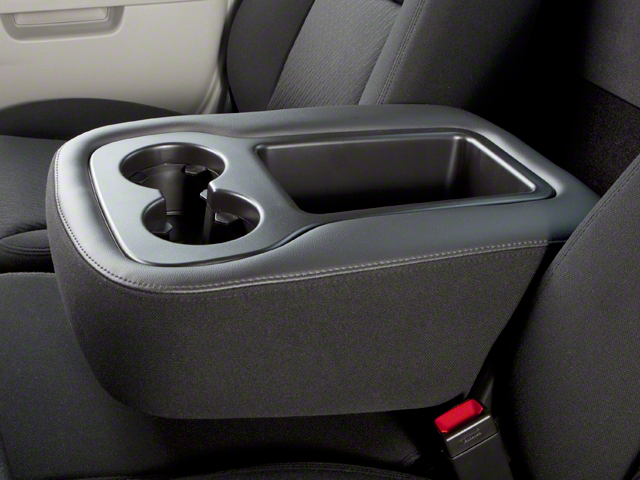

• driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage (STD)

CRUISE CONTROL, ELECTRONIC

• with set and resume speed
• located on steering wheel

WORK TRUCK PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

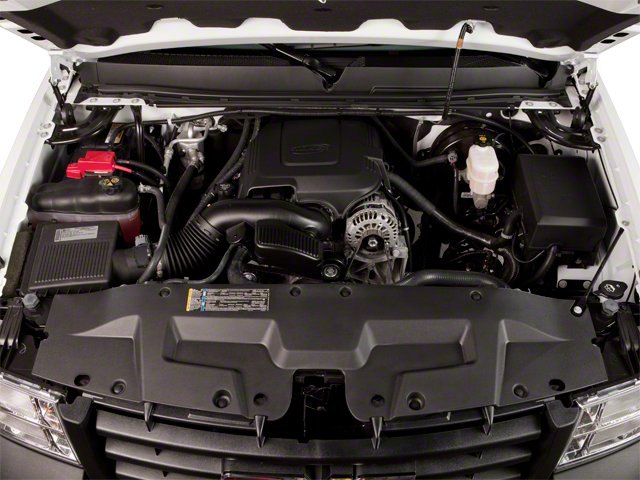

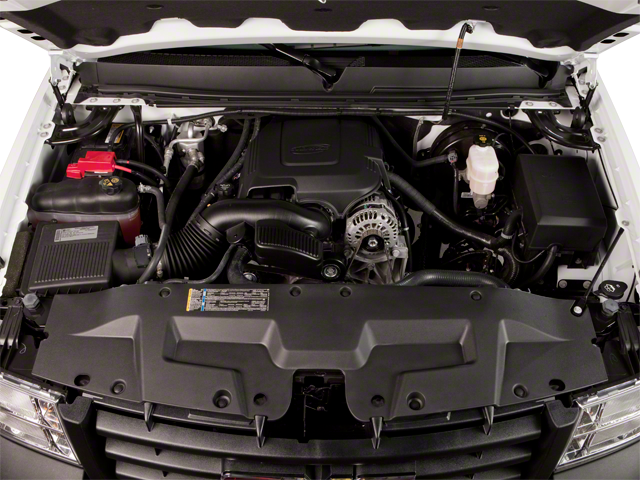

ENGINE, VORTEC 4.3L V6 MFI

• (STD)

WORK TRUCK PLUS PACKAGE

• includes (PY9) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) 6-lug chrome-styled steel wheels
• (V22) chrome surround grille and (T96) fog lamps

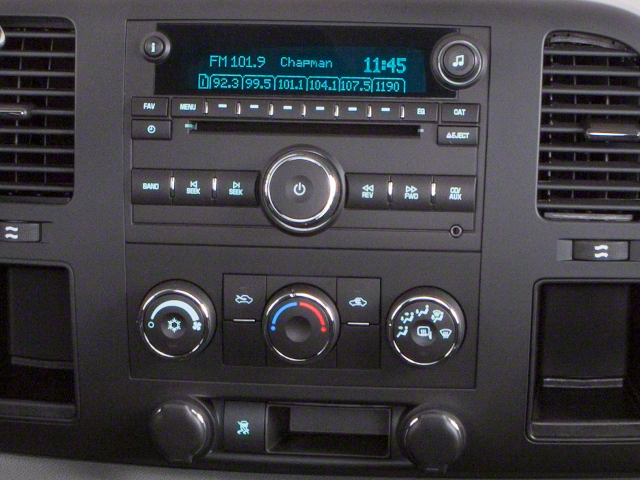

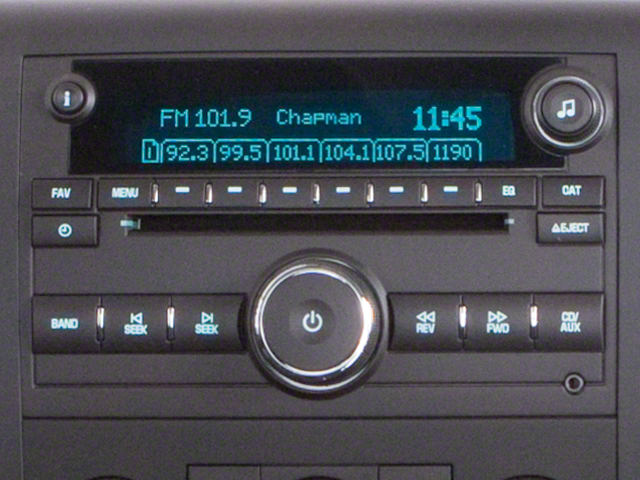

AUDIO SYSTEM, AM/FM STEREO WITH SEEK-AND-SCAN AND DIGITAL CLOCK

• (STD)

• FOG LAMPS FRONT HALOGEN
• FIRE RED
• TIRES P245/70R17 ALL-SEASON BLACKWALL includes a blackwall spare tire (STD)
• DARK TITANIUM CLOTH SEAT TRIM
• SUSPENSION PACKAGE SOLID SMOOTH RIDE includes 35 mm piston twin tube shocks and 36mm front stabilizer bar (STD)
• WHEELS 4 - 17" X 7.5" (43.2 CM X 19.1 CM) 6-LUG CHROME-STYLED STEEL includes chrome center caps
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-passenger driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage (STD)
• CRUISE CONTROL ELECTRONIC with set and resume speed located on steering wheel
• WORK TRUCK PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• GRILLE CHROME SURROUND
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• LICENSE PLATE BRACKET FRONT
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• ENGINE VORTEC 4.3L V6 MFI (STD)
• REAR AXLE 3.23 RATIO
• WORK TRUCK PLUS PACKAGE includes (PY9) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) 6-lug chrome-styled steel wheels (V22) chrome surround grille and (T96) fog lamps
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• GVWR 6400 LBS. (2903 KG)
• AUDIO SYSTEM AM/FM STEREO WITH SEEK-AND-SCAN AND DIGITAL CLOCK (STD)
• RECOVERY HOOKS FRONT FRAME-MOUNTED
• Rear Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Adjustable Steering Wheel
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Front Side Air Bag
• Child Safety Locks
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 4.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 3750
• Curb Weight - Front (lbs): 2584
• Curb Weight - Rear (lbs): 1879
• Gross Vehicle Weight Rating Cap (lbs): 6400
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4800
• Dead Weight Hitch - Max Tongue Wt. (lbs): 480
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 720
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 9100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3200
• Spring Capacity - Rear (lbs): 3750
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 3750
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 1.38
• Shock Absorber Diameter - Rear (mm): 1.38
• Stabilizer Bar Diameter - Front (in): 1.42
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Tires
• Front Tire Order Code: QU1
• Rear Tire Order Code: QU1
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2304
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.73
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 39.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Driver Side
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/o rear bumper (in): 205.6
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.6
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): 47.2
• Front Bumper to Back of Cab (in): 116.5
• Cab to Axle (in): 41.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): 13.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.7
• Cargo Box Width @ Top, Rear (in): 61.5
• Cargo Box Width @ Floor (in): 62.4
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.5
• Cargo Volume (ft³): 60.7
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Summary

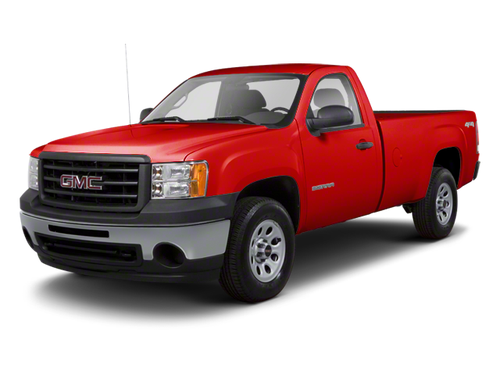

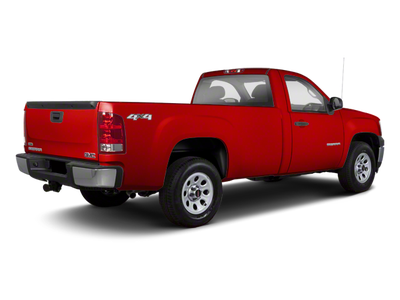

• Vehicle Name: GMC Sierra 1500
• Body Style: Reg Cab 6.5' Wideside
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
